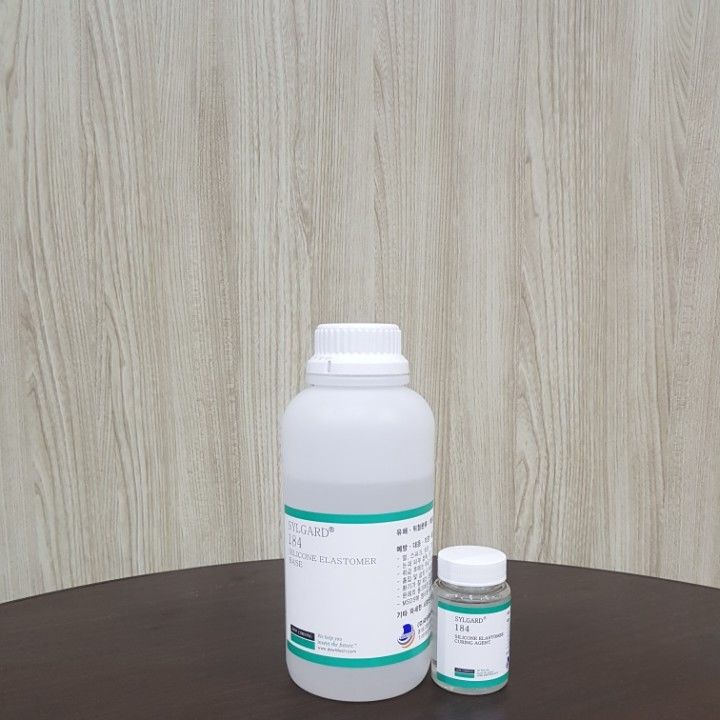

SYLGARD 184 A/B

Name: SYLGARD 184 A/B
Price: 137500 KRW
Availability: InStock
Rating: 5.0000 (7 reviews)

137,500원

Base : 840 G

Curing Agent : 84 G

간편결제 가능

구매평

Q&A

구매하기 장바구니 10

간편결제 가능

장바구니 장바구니

구매하기 구매하기

구매평

Q&A

Property	Unit	Result
One or Two Part		Two
Color		Colorless
Viscosity (Base)	cP	5100
	Pa-sec	5.1
Viscosity (Mixed)	cP	3500
	Pa-sec	3.5
Thermal Conductivity	btu/hr ft ºF	0.15
	W/m ⁰K	0.27
Specific Gravity (Cured)		1.03
Working Time at 25ºC (Pot Life - hours)	hours	1.5
Cure Time at 25ºC	hours	48
Heat Cure Time at 100ºC	minutes	35
Heat Cure Time at 125ºC	minutes	20
Heat Cure Time at 150ºC	minutes	10
Durometer Shore		43
Dielectric Strength	volts/mil	500
	kV/mm	19
Volume Resistivity	ohm*cm	2.90E+14
Dissipation Factor at 100 Hz		0.00257
Dissipation Factor at 100kHz		0.00133
Dielectric Constant at 100 Hz		2.72
Dielectric Constant at 100 kHz		2.68
Linear CTE (by DMA)	ppm/°C	340
Tensile Strength	PSI	980
	MPa	6.7
	Kg/cm2	69
Refractive Index	@ 589 nm	1.4118
Refractive Index	@ 632.8 nm	1.4225
Refractive Index	@1321 nm	1.4028
Refractive Index	@ 1554 nm	1.3997
UL RTI Rating	°C	150
